While some behaviors, like the fixed action patterns described in the previous tutorial, seem to be hard-wired into the nervous system of an organism, most behavior emerges as the result of interaction between the organism’s neurological structure and its interaction with the environment. Behavior that emerges as a result of experience is called learned behavior. Let’s look at a few examples.
1a. Maternal Imprinting
Imprinting is a type of rapid, phase-sensitive learning that has to occur during a critical period. Konrad Lorenz, an Austrian zoologist who shared the 1973 Nobel prize with Tinbergen, noted that Graylag geese would imprint on the first moving object they saw during the first hours after hatching, and would subsequently follow that object. In nature, that object is typically the goslings’ mother, making this an adaptive response. Lorenz manipulated this response, with the following effect.
1b. Learning Song in Songbirds
Songbirds include birds like warblers, thrushes, finches, and sparrows. These small birds make up almost half of the world’s 10,000 bird species.
Why do songbirds sing? Birdsong is a form of territoriality: a behavior in which an animal consistently defends a specific area against members of its own or other species. The immediate benefit of this behavior is to give an animal control of food sources, nesting sites, or mating areas, or to demonstrate fitness in such a way that attracts a mate.
In non-songbirds (birds such as ducks, geese, hawks, grouse, and so on) the sounds produced are mostly instinctual. However, learning to correctly sing a species’ song in a songbird requires learning.
Songbirds begin learning their songs while they’re still nestlings. This phase is a critical period: if songbirds miss this opportunity to hear the song of their species (which, for the most part, only happens in experimental settings), they’ll never learn it. During this period, nestlings will listen to the adults (typically their fathers) singing around them. After fledging (growing enough feathers for flight), juvenile songbirds begin to replicate these songs and practice them until they can accurately reproduce them. (source: https://academy.allaboutbirds.org/birdsong/)
To create an accurate match between the song that they’re producing and the song they’ve heard from their fathers, young songbirds need to have memorized their father’s song. If young birds are isolated and kept from hearing their father’s song, they won’t be able to reproduce their species-specific song. If they can’t hear their own song, their ability to produce the correct call will be further impaired.
The image above shows the results of a series of experiments in the 1980s demonstrating how birdsong learning works. Row “a” shows a sonogram of normal adult birdsong in swamp sparrows (Melospiza georgiana) and song sparrows (Melospiza melodia). Row “b” shows the song produced by juveniles when they were isolated and unable to hear adult songs during development. Row “c” shows the further impairment that occurs when juveniles are deafened and couldn’t hear their own songs during development. (Note from Mr. W: From the perspective of ethical treatment of animals, I find these experiments to be deeply troubling…and I hope you do, too!)
To end this discussion of birdsong, note that acoustic territory marking is not unique to birds. Wolf packs howl to mark their territory, as do howler monkeys. Other animals use scents to mark territory, and often these scents, (deposited in urine, feces, or specialized secretions) are laced with pheromones (hormone-like substances that elicit a physiological response in another individual). In other species, such as the northern elephant seal, the territory is actively patrolled by an alpha male, who controls a harem of females, and actively wards off incursions by other males.
2. Recognizing the landmarks
In the 1920s, When Tinbergen was a Ph.D. candidate, he carried out a series of experiments to try to determine what senses wasps used to navigate back to their nests after they’ve been out foraging for food.
The wasp that Tinbergen studied was Philanthus triangulum, also called the beewolf. That’s because these wasps prey on bees. The wasps lay their eggs in underground brooding chambers, which females create by digging into suitably soft ground.
Once the chambers are dug, the female wasps hunt for bees, which they paralyze with venom and then bring back to their brooding chambers. The female wasps then lay their eggs in the bee’s paralyzed body, which serves as food for the next generation of wasps.
Building a nest takes several days, and it may take several hunting trips to adequately stock the nest with food. In addition, other female wasps are building their nests nearby How does the wasp know 1) how to get back to the vicinity of her nest, and 2) how to distinguish her nest from other nests dug by other females?

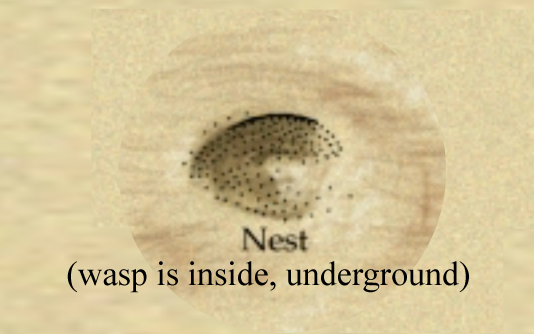

Tinbergen investigated this through a series of field experiments. He started by finding areas with wasp nests. While the wasp was in its nest, Tinbergen surrounded the nest with a ring of pine cones.
Tinbergen already knew that an emerging wasp does an orienting flight where she circles her nest a few times before flying out to forage.
To test if she was orienting to visual cues, Tinbergen moved the pinecones a short distance away from the nest and then waited for the wasp to return. When the wasp returned, Tinbergen counted how many times the wasp chose to go to the nest, as opposed to how many times she went to the center of the ring of pinecones. (Note: the Source for much of this account is “How to Design Experiments in Animal Behaviour,” by Raghavendra Gadagkar.)
[qwiz qrecord_id=”sciencemusicvideosMeister1961-Tinbergen’s Experiments with Wasps (v2.0)”]
[h]Tinbergen’s Experiments with Wasps
[q labels = “top”]Tinbergen ran 105 trials with 17 different wasps. He did multiple trials per wasp by shooing the returning wasps away after they had made their decision, and seeing if they would repeat their choice. The labels above show the results. Drag the labels to the correct location.
[l]chosen 105 times
[fx] No. Please try again.
[l]chosen 0 times
[fx] No, that’s not correct. Please try again.
[q]But what environmental cues were the wasps using? Tinbergen did the following to find out. After training the wasps with a circular ring of pine cones outside of their nests, he changed the shape of the pine cones around the nest to make a triangle instead of a ring. Next to that triangle of pine cones, he created a circle of pine cone-sized stones in the shape of the training ring (source: Biology, Solomon, Berg, Martin, Brooks/Cole, p. 1103)
Did the wasps go to the pine cones at “b,” or the circle of rocks at “c?”
3. Navigation by Pheromones
As we’ve just seen with Tinbergen’s wasps, accurate movement through space is essential for survival and reproduction. Whether you’re an earthworm crawling through the soil, a slow loris moving through the forests of Madagascar, or a wolf pack taking down a caribou calf that’s been isolated from its herd, moving and orienting are key to finding food, shelter, and mates.
As primates, our sensory system is highly geared toward vision, and it’s easy for us to think that animals simply look around, decide where they want to go, and go. But shrink yourself down to the size of an ant: because you’re so close to the ground, your line of sight would be extremely limited. How would you know where to go? Once your home base was out of sight, how would you know how to find your way home? If you’re a social species (as ants are), how would you tell others what you’ve found?
Many species of ants navigate by using trail pheromones, a phenomenon that was first described by Harvard biologist E.O. Wilson in 1962. Pheromones are chemical substances released into the environment that affect the behavior and physiology of other animals of the same species. In other words, pheromones are like hormones, except for the fact that they’re released outside of the body, and instead of targeting another part of the body, they target another individual.
When an ant finds a food source, that ant will secrete chemicals that guide other ants to the food. As these pheromones diffuse from the trail into the surrounding air, other ants can find the trail and reinforce it on their return to the colony. When the food source runs out, the returning ants stop secreting the pheromones, and the trail disappears.
4. The Ant Pedometer
Let’s look at another navigational adaptation found in ants.
When ants are foraging for food, they move around in pathways that seem almost random (see the red pathway on the left). After finding food, their return to their nest is direct (as shown by the turquoise pathway). How? Because ants are so low to the ground, they can’t see their nest and head back toward it. And if you’re thinking that the direct return is a function of the trail pheromones that we just discussed, note that this direct return happens before a pheromone trail has been laid down. The first foraging ant, after wandering around until it finds some food (red path), can directly return to the nest (turquoise path).
Since the early 1900s, it’s been hypothesized that the ants do this by counting their steps, integrating their turns into their count, and then computing a direct pathway back to their nest. In 2006, Matthias Wittlinger, Rudiger Wehner, and Harald Wolf published the results of an experiment testing this hypothesis, working with Cataglyphis fortis, a desert ant species that lives in Tunisia (Northern Africa), where it forages for dead arthropods.
Here’s what they did.
STEP 1: Train the ants. This involved letting the ants walk through a metal training channel from their nest to a feeder positioned 10 meters away.
STEP 2: Test the ants: This involved catching the ants at the feeding site and transferring them to a test channel. Once in the test channel, the ants head back to where they think their nest is. When they’ve covered that distance and not found the nest, the ants switch from a “straight and steady return path” to a “search trajectory,” marked by a 180-degree turn, followed by pacing back and forth around what they thought was the nest’s location. (Note: the source for this and what follows is The Ant Odometer: Science, Volume 312, 6/30/06).
So, how did the ant know when it had gone a sufficient distance to get back to its nest? Was the step-counting hypothesis correct?
Wittlinger, Wehner, and Wolf’s experiment tested the step-counting hypothesis by changing the length of the ants’ legs. They divided the ants into three groups (refer to the images above and in the quiz below):
- The stumps had their legs shortened by cutting the legs in the middle of the second leg segment.
- The stilts had their legs lengthened by gluing pig bristles to the lower leg segment.
- In the third group (normals) the legs were unmodified.
[qwiz qrecord_id=”sciencemusicvideosMeister1961-The Ant Pedometer (v2.0)”]
[h]The Ant Pedometer
[i]Here’s another view of the leg modifications used in this experiment
[q]Here are the results of the first part of their experiment. The ants were trained with a food source that was 10 meters away from their nest. Leg lengths were normal on the outbound journey and then modified for the return journey.
Which group was the stilts?
[q]Here (again) are the results of the first part of their experiment. Leg lengths were normal on the outbound journey and then modified for the return journey.
Which group was the stumps?
[q]In the second part of the experiment, ants with modified legs were allowed to walk to a food source, then transferred to the test track on their return trip. What can you conclude from the results?
[q]Let’s think about what this experiment showed. The hypothesis that was being tested was that while foraging for food, the ants [hangman] their steps, keep track of their turns, and then compute a relatively [hangman] path back to their nest.
[q]Experiment 1 supported the step-counting hypothesis. Letter A shows the return of the ants in the group that was called the [hangman]. Because their legs were artificially made to be [hangman], their estimated number of [hangman] for their return caused them to walk a [hangman] distance. Letter C shows the return of the ants in the group that was called the [hangman]. Because their legs were artificially made to be [hangman], the estimated number of [hangman] for their return journey caused them to walk a [hangman] distance. Group B served as this experiment’s [hangman] group.
[q]Experiment 2 was further confirmation of the hypothesis that ants compute the number of [hangman] on their return journey by [hangman] their steps on the outbound journey. Every group of ants was able to correctly compute the distance, even though the length of the [hangman] of two of the three groups had been experimentally modified. As long as an ant could [hangman] the number of steps it took on its outbound journey, it could correctly estimate the [hangman] of steps required for the journey home.
NPR has put together a hilarious video explaining the ant odometer. Enjoy!
5. Learning and Orienting: Checking Understanding
[qwiz qrecord_id=”sciencemusicvideosMeister1961-Learning and Orienting: Cumulative Quiz (v2.0)”]
[h]Learning and Orienting: Cumulative Quiz
[q]Behavior that emerges as a result of experience is called [hangman].
[q]A rapid, phase-sensitive type of learning that occurs during a critical period is called [hangman]
[q]The gosling’s behavior can be explained by the fact that they [hangman] on the wrong object (in this case, Konrad Lorenz).
[q]The diagram below shows that songbirds, to learn how to properly sing the song of their species, need to be exposed to the [hangman] of a tutor (typically during a [hangman] period
[q]Beewolf wasps can identify the location of their nests by learning the identify the geometric [hangman] of objects outside their nests.
[q]Ant trails work not by sight, but by the deposition of [hangman] that mark a chemical trail that ants can follow.
[q]The ant species C. fortis, which forages for food in the desert, can find its way back to its nest by [hangman] its steps and tracking its [hangman].
Proceed to Topic 8.1, Part 3, Migrating (the next tutorial in AP Bio Unit 8).
